600,000 t/a GGBFS Plant

Get solution and support:
I am interested in (*) , raw material is , the production capacity is t/h, send email to (*) . Name: (*) Phone: Country:

Application :                        Cement Plant  Clinker Grinding Unit, Steel Mill
Annual Output :                  600,000 tons
Power Consumption :          37 kWh/t
Blaine Fineness :                  4200-4500 cm²/g

The GGBFS(Ground Granulated Blast Furnace Slag), independently designed and manufactured by Great Wall Machinery, is the special equipment for milling water slag, steel slag and other industrial slag into powder size. It is the excellent equipment for producing steel slag powder in the processing of crushing, conveying, grinding and drying. The whole system has High grinding efficiency but less than 43 kwh/t power consumption.

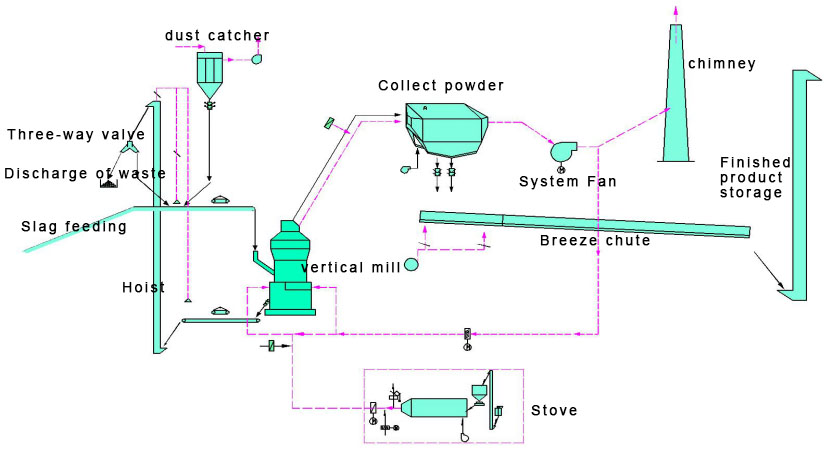

ggbs production line process.jpg

Features

1. 20-30% power consumption are saved, compared with ball grinding mill

The material is ground in the material layer with low energy consumption. Along with the increasing of the moisture content, the better of the power saving effect is.

2. The noise control conform to” Emission standard for industrial enterprises noise”

It doesn’t work as ball mill, no crash from grinding balls and ball& lining plate. The noise is controlled lower 20-25% db than the ball mill.

3. Small Dust Concentration

As the vertical mill work in the full closed system with negative pressure, there is no raise dust. Very clean and dust emission index can conform to Emission standard of air pollutants for cement industry.

4. Good material drying capacity, finished products moisture can be 0.5-1.0%

The hot wind blows into vertical mill to carry the material. When the feed moisture is too big, we can control the wind’s temperature to make sure the finished products moisture are qualified.

5. Less Product Unit Metal Consumption

Because there are no immediate contact between grinding roller & grinding table, the vertical mills have smallerosion and thus extend its machine life and save the product cost.

6. Finished Products Brunauer-Emmett-Teller 4200-4500 cm²/g

As raw meal stays in the vertical mill very soon, it is easy to test and control its particle size and chemical component. The over grinding phenomenon is diminished and product quality are more stable.

7. Vertical mill floor space is 50% of ball mill’s. Save investment cost.

Vertical mill is designed with simple technological process, constructed with small floor spaces, compact allocation and outdoor arrangement, which greatly low down the investment cost.

Revenue:

1. 3 years for cost recovering

2. Scientific process optimization and control are used to low down the energy consumption

3. Shorten EPC period, save your time-cost.

Simple view




Configuration



No. Name & Details Unit Quantity
1st Main equipment
1 Vertical roller mill GRMS4641 set 1
2 Bag type air box pulse dust collector CCLF4X11 set 1
3 System fan R6-2×39№25F set 1
4 Hot-blast stove ZDF-QR18  set 1
2nd Auxiliary machinery
1 Feeding and grinding of slag set 1
2 Storage and bulk of ggbfs set 1
3 Cooling water system set 1
4 Air compressor system set 2
3rd Heat preservation material & casting material set 1
1 High-heat castable ton 72
2 Wear-resisting ceramics in mill to dust collector duct m2 140
3 Heat preservation material m2 1900
4th Electrical cables and control instrument set 1
1 High-voltage inverter(10000V) set 1
2 Center control set 1
3 Electrical Cable set 1
4 Electrical (high/low voltage control cabinet & starting tank, etc set 1
5 Bridge span structure set 1
6 Power source & differential pressure transmitter set 1
