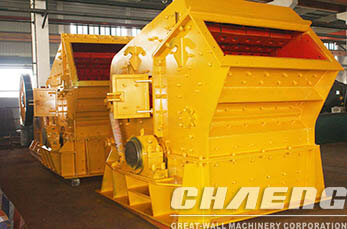

Impact crusher

Impact crusher is applicable to crushing ore of various compressive strength levels, the breaker is ideal processing equipment for aggregate of top grade road surface and water and electricity construction.

We're here to help:

Easy ways to get the answers you need.

86-371-55019878, skype:greatwall1958
86-15515636645
  • Feed opening is big, crushing chamber is high
  • The final product size can be controlled easily
  • High crushing ratio,comprehensive benefits is high


Structure of Impact Crusher:



When being fed into the blow bar function area, the materials fall into breakage because of high-speed impact and get the second breakage after being thrown to the impact plate installed above rotor, and finally rebound to the blow bar area to get repeat crushing. The process repeats until materials are broken to the required size and then discharged from the bottom of the secondary impact crusher, We can get our required size of the end products by adjusting the clearance between the impact frame and the rotor frame for stone impact crusher popular in abroad



Working Principle of Impact Crusher:



The materials are crushed by impact energy produced in the crusher. When the materials enter the zone of the blow bar, they are flung into the impact equipments via the high-speed impact of the blow bar. These materials will be re-crushed after rebounding into the impact plate. The process goes on until the materials are crushed to the required size and then will be discharged from the outlet.

Model Rotor Φ×L (mm)

Feed

Opening (mm)

Max

Feeding (mm)

Capacity

(t/h)

Power

(kw)

Motor

Model

Machine

Size (mm)

GW1214II Ф1150×1400 1100×1430 500 130-200 4-132 Y315M-4/132 2400×2310×2550
GW1315II Ф1300×1500 1200×1530 600 180-320 4-160 Y315L1-4/160 2700×2570×2800
GW1318II Ф1300×1800 1200×1830 700 240-400 4-200 Y315L2-4/200 2700×2870×2800
GW1415II Ф1400×1500 1450×1530 800 240-450 4-200 Y315L2-4/200 3000×2700×3070
Model Rotor Φ×L (mm) Feed Opening (mm) Max Feeding (mm) Capacity (t/h) Power (kw) Motor Model Machine Size (mm)
GW1214Ⅲ Ф1150×1400 570×1430 250 90-170 4-132 Y315M-4/132 2550×2310×2100
GW1315Ⅲ Ф1300×1500 625×1530 300 180-270 4-160 Y315L1-4/160 2960×2570×2380
GW1318Ⅲ Ф1300×1800 625×1830 300 220-300 4-200 Y315L2-4/200 2960×2870×2380
GW1415Ⅲ Ф1400×1500 800×1530 350 280-350 4-200 Y315L2-4/200 3120×2650×2660

Impact crusher with excellent performance, counterattack breaker can be widely applied in expressway construction, hydraulic engineering, high speed railway and breakstone for buildings.

Pre-sales Service:
The wide product range enables us to provide our customers with stand-alone machines or complete processing plants. Based on our customers’ request and budget, our experts make efficient, reliable solutions. Following customers’ order we produce strictly, what’s more, before placing the order every customer has the chance to visit XinXiang Great Wall (Chaeng) working machines or complete plant in the site.

To ease the trip for every visitor to China, in particular the first-time visitor, we provide FOR FREE all relevant visitor-friendly services including invitation letter preparation, hotel reservation, airport pick-up, incity transportation, and sightseeing guide, etc.


After-sales Service:
Experienced technicians guidance is available on the phone, and on the internet. One or more engineers will be dispatched to the quarry site to help install the customers’ plants. Necessary training about machine daily maintenance to local workers is provided also.

After-Sales department is made of well-trained employees and installation engineers, the installation engineers are special and professional members of XinXiang Great Wall (Chaeng), they are now strategically located home and abroad, working for our customers.
