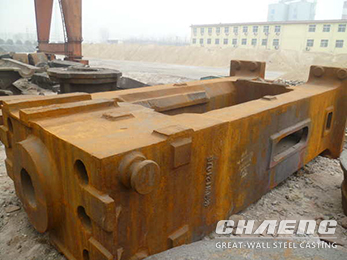

Side Frame of Rolling Mill

Press frame occupies about 60% of total weight of the press machine. The performance of press machine is directly determined by its frame. The press frame can apply to the press fitting for shafts, nut set parts and apply to the technology for the simple sheet material parts’ stretch, curve, shaping and blanking, etc. The main factors that affect the structural performance of the press frame include reinforcing rib x 1, side plates x 2, upper support plate thickness x 3, web plate thickness x 4 and bottom support plate thickness x 5.
Weight 10~50 t
Material ASTM: 1035 / DIN: CK35
Application Forging, Stamping Presses
Customizable Yes

We're here to help:

Easy ways to get the answers you need.

86-371-55019878, skype:greatwall1958
86-15515636645
  • 1.After years of accumulation, we are committed to making innovation on the heat treatment technology and apply it to the press frame casting. The wear resisting and impact resistance performance has been greatly improved and good solution for the defect problem of R angle is offered.
  • 2. The casting is made by the high strength steel material, which ensures the press frame can running stably for a long time and extends its service life.
  • 3. Our company has strong production capability in steel castings. For the components such as the press frame, it is available for us to take a batch manufacturing order in a very short cast period and with large production capacity.




Owing to the good service and reliable product quality, our steel castings are widely used by many famous press machine manufacturers in province of Chongqing, Hangzhou, Jiangsu, Zhejiang, etc.

 Great wall steel casting corporation has two sets of 30 tons basic electric arc furnace, 9,600m2 molding area, which annual production capacity is 30000 tons and can supply production and processing one-stop services to customers.
