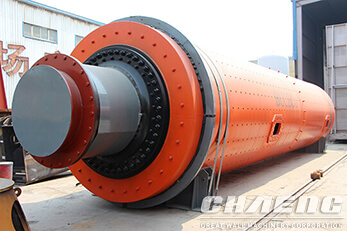

Ball Mill

Ball Mill is made up of feeding part, discharging part, gyre part, transmission part, (decelerator, small transmission gear, generator, electrical control) and so on.


Application : Cement Plant, Clinker Grinding Unit, Steel Mill, Quicklime Plant
Capacity : 21-155 t/h
Motor Power : 800-3550 kw
Fineness : 3000~4000 cm²/g

We're here to help:

Easy ways to get the answers you need.

86-371-55019878, skype:greatwall1958
86-15515636645
  • Easy to adjust the fineness of grinding products.
  • Both dry type and wet type producing.
  • Strong material adaptability, continuous production, big crushing ratio.
  • Suitable for grinding hard material.
  • No pollution for the powder with ceramic cement ball mill.

Applied material

cement, silicate, building material, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc.

cement.jpg clay ore.jpg copper ore.jpg .Iron ore.jpg Lead.jpg tin ore.jpg

Product Profile

Ball Mill is made up of feeding part, discharging part, gyre part, transmission part, (decelerator, small transmission gear, generator, electrical control) and so on. The hollow axis adopts the cast steel and the lining can replace , the rotating big gear processes in the way of casting rolling gear. The barrel body is wearable well and bears wearable scale board. This machine runs steadily and works reliably.

Ball Mill Working Principle

1. This ball mill machine, a horizontal type and tubular running device, has two chamber. This machine is grid type. The material enters first warehouse spirally and evenly along the input material hollow axis by input material device.

2. In this chamber, there is a ladder scaleboard or ripple scaleboard, and different specification steel balls. When shell rotates and it produces centrifugal force. At this time, steel balls will be carried to certain height and falls down to make the material heavy impact and grinded.

3. After being grinded coarsely in the first chamber, material enters second chamber for regrinding with the steel ball and scaleboard. At the end, the powder is discharged by output material board and the final products are completed.



Specifications



Model Output (t/h) Rotate Speed (r/min) Feeding Granularity (mm) Grinding Media Load (t) Effective Volume (m³) Motor (kW) Weight (t)
Φ2.4×13 21-23 20.3 ≤25 65 51.7 800 116
Φ2.6×13 28-32 19.61 ≤25 75 60 800 149
Φ3.0×13 33-37 18.08 ≤25 108 80.9 1250 172.3
Φ3.2×13 45-50 17.8 ≤25 128 92.4 1600 218
Φ3.2×14 48-52 18.04 ≤25 138 99.8 1800 228
Φ3.5×13 55-60 17.09 ≤25 160 111.2 2000 250
Φ3.8×12
(closed-circuit)
110 16.6 ≤25 175 123.6 2500 203
(excluding drive parts)
Φ3.8×13 66 16.4 ≤25 195 129.3 2500 286
Φ4.0×13 80-85 15.5 ≤25 235 155 2800 220
(excluding drive parts)
Φ4.2×13
(closed-circuit)
140-155 15.6 ≤25 240 157 3550 287
(excluding drive parts)

Ball mill is a key machine mainly used to process materials from crushing process, and it is widely used in various manufacture industries. It is widely used in Cement Plant, Clinker Grinding Unit, Quicklime Plant, Thermal Power Plant, Steel Mill, Mining
