Application : Cement Plant, Thermal Power Plant
Annual Output : 900,000 tons
Process Type : New Dry Process
Blaine Fineness : 3300-3800 cm²/g

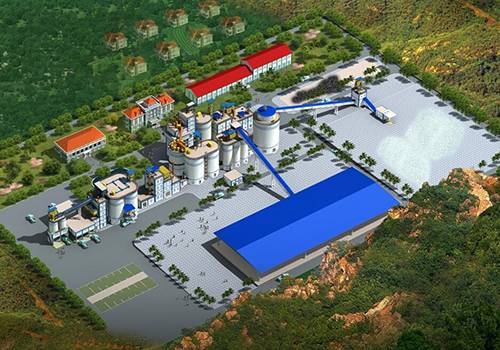

CHAENG (Great Wall Machinery) provides turnkey basis service globally with everything that cement plants need. We provide service include engineering, manufacturing, procurement, installation, debugging and training for 3000 t/d cement plant project. The equipment is composed of the low-resistance and high-efficiency five-stage preheating and decomposition system, dry process φ4×60m rotary kiln, inflatable beam grate cooler, advanced vertical roller mill grinding system and DCS automatic control system.
Vertical mill for Raw Material Preparation
Raw material preparation uses GRMR40.41 vertical mill that developed by Great Wall Machinery. GRMR40.41 vertical mill is a kind of grinding equipment with these advantages: simple process, strong drying ability, safe and reliable operation, high grinding efficiency, low power consumption, easy maintenance and short debugging cycle, etc.
Clinker burning system with lower energy and heat consumption
This production line adopts advanced raw preheating and precalcining system, reducing the heat consumption and energy consumption effectively in clinker calcined phase. The clinker has better performance, and is easier to grind. Exhaust gases from the preheater enters into the mill, which both saves energy and reduces environmental pollution.
Efficient cement mill producing high quality cement
The specific surface of cement produced by cement grinding mill φ4.2×13m is 3300-3800 cm²/g, which meets even beyond the common standard. In the process of using, the cement has the advantage of quick hydration reaction and fast strength development.
Good pollution control, greening of factory.
This production line fully considers waste and dust treatment in the design process. We install bag filter and electrical deduster in the main stage of dust treatment, reducing the dust in the air effectively. The whole factory area is fully greening, bringing a good working condition.
| No. | Product | Model | Specification | QTY | Capacity |
|---|---|---|---|---|---|
| 1 | Single stage hammer crusher | Feeding size <1200x900x900mm product size <70mm R95% motor: 600kW |
1 | 400 t/h | |
| 2 | Cantilever stoker | 1 | 500 t/h | ||
| 3 | Bridge-type scraping reclaimer | 1 | 250 t/h | ||
| 4 | Raw Meal Vertical roller mill | feeding size: <75mm product fineness: <12% R90 feeding moisture: max.6.5% product moisture: <0.5% motor: ~2000kW |
1 | 200 t/h | |
| 5 | Kiln and electric dust collector of raw mill | Air volume: ~480000m³/h Dust collect area: ~161m2 Inlet temperature: 100~150℃ Inlet dust: <80g/Nm3 Outlet dust: <70mg/Nm3 |
1set | ||
| 6 | Five-stage Preheater and precalciner | C1: 2-Φ4500mm C2, C3: Φ6460mm C4, C5: Φ6760mm predecomposition: Φ5060mm differential pressure: <5500Pa gas temperature of outlet.: 320℃ |
1set | 2500 t/d | |
| 7 | Rotary kiln | Φ4.2x60m | Kiln pitch: 4% Rotate speed: 0.4~4r/min. motor: 450kW |
1 | 2500 t/d |
| 8 | Grate cooler | Effective area: ~62.m2 clinker temperature of inlet: ~1350℃ clinker temperature of outlet: 65℃ discharging size: <25mm heat efficiency: >72% |
1 | ||
| 9 | Electric dust collector of grate cooler | Air volume: 315000m3/h Dust collect area: ~103.5m2 Air temperature of inlet: 220~350℃ Dust content of inlet: <20g/Nm3、 Dust content of outlet: <70mg/Nm3 |
1 | ||
| 10 | Gypsum crusher | Feeding size: <500mm Product fineness:<25mm motor: 110kW |
1 | 70 t/h | |
| 11 | Cement mill | Φ4.2x12.5m | Feeding size: <25mm Product fineness: 3200cm2/g Rotate speed: 15.8r/min. motor: 3000kW |
||
| 12 | Classifier | O-Sepa, N-2500 | Feeding capacity: max. 360t/h Air volume: 2500m3/min. Motor : 130kW |
80~120 t/h | |
| 13 | Packing in bulk | SZ-2 | Output: ~200(per set) | 4 | |
| 14 | 8 Nozzles Fixed Packing Machine | Output: 100(per set) | 2 |
Production Line Equipments
a. GRMR22.30 Raw Material Vertical Roller Mill
b. GRMC12.30 Soft Coal Vertical Roller Mill
c. φ3.2×48 Rotary Kiln
d. φ3.8×13 Cement Mill
Production Line Equipments
a. GRMR38.41Raw Material Vertical Roller Mill
b. GRMC20.30Soft Coal Vertical Roller Mill
c. φ4.0×60 Rotary Kiln
d. φ4.2×13 Cement Mill (2 Sets)
Production Line Equipments
a. GRMR40.41 Raw Material Vertical Roller Mill
b. GRMC22.30 Soft Coal Vertical Roller Mill
c. φ4.2×60 Rotary Kiln
d. φ4.2×13 Cement Mill (2 Sets)
Production Line Equipments
a. GRMR48.41 Raw Material Vertical Roller Mill
b. GRMC23.30 Soft Coal Vertical Roller Mill
c. φ4.5×66 Rotary Kiln
d. φ4.2×13 Cement Mill (2 Sets)
Production Line Equipments
a. GRMR53.41 Raw Material Vertical Roller Mill
b. GRMC26.30 Soft Coal Vertical Roller Mill
c. φ4.8×72 Rotary Kiln
d. φ4.2×13 Cement Mill (3 Sets)
